Prop Scan

A prop scan (or propeller analysis report) is like a detailed health check-up for your boat's propeller. It uses specialized equipment to precisely measure various aspects of the propeller's geometry and compare them against its original design specifications or ideal values. This helps identify any damage, wear, or manufacturing inconsistencies that could be hurting your boat's performance, fuel efficiency, or causing vibrations.

Here's a breakdown of what you'll typically see on a prop scan report and how to interpret it:

Key Parameters and Their Interpretation

Prop scan reports usually present data in tables, sometimes with bar graphs or "wheel views" to show deviations visually. The goal is to ensure all blades are as identical as possible and match the desired design.

Pitch:

• Definition: The theoretical distance a propeller would move forward in one complete revolution if there were no "slip" (the difference between theoretical and actual forward movement). It's usually measured in inches.

• Report Data: You'll see pitch values measured at different radii along each blade (e.g., 50% radius, 70% radius, 90% radius from the hub to the tip). There will also be an average pitch for each blade and an overall average for the whole propeller.

• Interpretation:

  • Ideal: Pitch values are consistent across all blades and at different points along each blade, matching the propeller's stated pitch (e.g., a "21-pitch" prop should have an average pitch close to 21 inches).

  • Problem: Significant variations in pitch between blades or along a single blade indicate damage (bent blades), improper repairs, or manufacturing defects.

    • Example: If Blade 1 has an average pitch of 20 inches and Blade 2 has 22 inches, the propeller is out of balance. This will cause vibration, reduce speed, and put extra strain on the drivetrain.

    • Impact: Incorrect pitch (overall) means your engine won't reach its optimal RPM range. Too much pitch will lug the engine (RPMs too low), and too little pitch will allow it to over-rev (RPMs too high).

Rake:

• Definition: The angle of the blade relative to the propeller hub, measured in degrees.

  • Positive rake: Blades slant away from the boat, often used to lift the bow, reduce wetted surface, and improve top speed.

  • Negative rake: Blades slant towards the boat, can help with stern lift, common on some workboats.

• Report Data: Rake angles for each blade.

• Interpretation:

  • Ideal: Rake angles are consistent among all blades and match the design intent.

  • Problem: Inconsistent rake can lead to unbalanced thrust, poor handling characteristics, and sometimes increased cavitation.

• Skew:

  • Definition: The sweep of the blade leading edge back from the hub. Skew helps reduce vibration and noise, especially on high-speed boats, by spreading out the pressure pulses as the blade enters the water.

  • Report Data: May be measured in degrees or noted as a design feature.

    • Interpretation:

      • Ideal: Skew is symmetrical and consistent across all blades according to design.

      • Problem: Uneven skew can lead to imbalanced forces and increased vibration.

  • Blade Track/Alignment (Axial Position):

    • Definition: How accurately each blade follows the exact rotational path of the others. Essentially, it checks if any blade is bent forward or backward out of its plane.

    • Report Data: Measured as a deviation (e.g., in inches or millimeters) from a perfect rotational plane.

    • Interpretation:

      • Ideal: All blade tips track within a very small tolerance (e.g., +/- 0.005 inches).

      • Problem: Large blade track deviations are a major source of vibration. If one blade is significantly higher or lower than the others, it creates an imbalance that causes the propeller to wobble.

  • Blade Thickness/Section Profile:

    • Definition: The thickness and cross-sectional shape of the blade at various points.

    • Report Data: May show deviations from the ideal profile, often with notes on specific damage.

    • Interpretation:

      • Ideal: Consistent thickness and smooth, aerodynamically efficient profiles.

      • Problem: Dents, nicks, or thinning of the blade due to impact or erosion can disrupt water flow, leading to cavitation, reduced efficiency, and potential blade failure under stress.

  • Cup:

    • Definition: A small, curled lip on the trailing edge of the propeller blade. It effectively increases the propeller's "bite" on the water, reduces slip, prevents ventilation, improves "hole shot" (initial acceleration), and can allow for higher engine mounting.

    • Report Data: Presence, consistency, and amount of cup might be noted.

    • Interpretation:

      • Ideal: Consistent cup across all blades, if the propeller is designed with cup.

      • Problem: Inconsistent or damaged cup can lead to excessive slip (propeller spinning faster than it should for the boat's speed), lower top speed, and increased ventilation (air being drawn into the propeller).

  • Balance (Static and Dynamic):

    • Definition:

      • Static Balance: Ensures the weight is evenly distributed around the propeller's center when stationary.

      • Dynamic Balance: Addresses weight distribution while the propeller is rotating, accounting for forces that cause wobble at speed.

    • Report Data: Will indicate whether the propeller is balanced within acceptable tolerances, and if not, the amount and location of weight correction needed.

    • Interpretation:

      • Ideal: Propeller is within specified balance tolerances (often an ISO class, like Class 1 or Class S for high accuracy).

      • Problem: An unbalanced propeller is a primary cause of vibration, which can lead to premature wear on the shaft, bearings, engine, and an uncomfortable ride.

Surface Condition/Damage Assessment:

• efinition: A qualitative assessment of visible damage, corrosion, or pitting on the blade surfaces.

• Report Data: Notes on nicks, dings, bent tips, erosion, or corrosion.

• Interpretation:

  • Ideal: Smooth, polished surfaces, free of imperfections.

  • Problem: Even minor surface damage can disrupt water flow, leading to increased drag, cavitation, and reduced efficiency. Significant damage might require more extensive repair or replacement.

How to Read a Typical Report

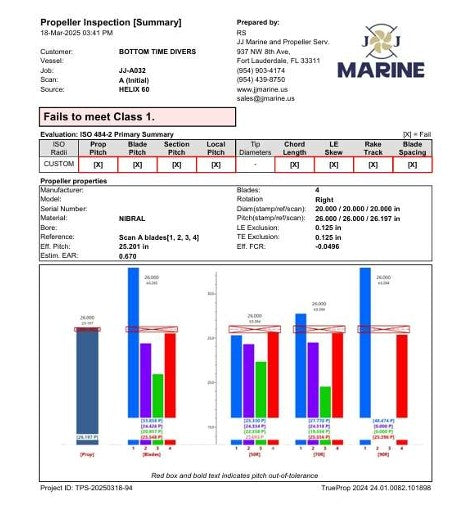

Propeller Scan Report - Pitch Analysis
